Technical Parameters
Model | Load Capacity (KG) | Min Height (retracted) (M) | Max Platform Height(M) | Max Working Height(M) | Platform Size(MM) | Overall Size(MM) | Net weight (KG) |
500kg Capacity |
|
|
|
|
|
|
SLFT0504 | 500 | 1.2 | 4 | 6 | 2100*830 | 2250*950*1100 | 800 |
SLFT0506 | 500 | 1.2 | 6 | 8 | 2100*830 | 2250*950*1200 | 880 |
SLFT0508 | 500 | 1.38 | 8 | 10 | 2100*930 | 2250*1060*1380 | 1050 |
SLFT0509 | 500 | 1.5 | 9 | 11 | 2100*930 | 2250*1060*1500 | 1165 |
SLFT0510 | 500 | 1.53 | 10 | 12 | 2100*1230 | 2250*1350*1530 | 1360 |
SLFT0512 | 500 | 1.75 | 12 | 14 | 2550*1530 | 2796*1670*1750 | 2260 |
SLFT0514 | 500 | 1.81 | 14 | 16 | 2812*1530 | 3067*1730*1810 | 2400 |
SLFT0518 | 500 | 2.08 | 18 | 20 | 3070*1600 | 3321*1810*2080 | 3900 |
1000kg Capacity |
|
|
|
|
|
|
SLFT1004 | 1000 | 1.18 | 4 | 6 | 2100*1200 | 2250*1350*1180 | 1250 |
SLFT1006 | 1000 | 1.3 | 6 | 8 | 2100*1200 | 2200*1350*1300 | 1400 |
SLFT1008 | 1000 | 1.42 | 8 | 10 | 2100*1200 | 2200*1350*1420 | 1585 |
SLFT1010 | 1000 | 1.53 | 10 | 12 | 2100*1200 | 2200*1350*1530 | 1700 |
1500kg Capacity |
|
|
|
|
|
|
SLFT1510 | 1500 | 1.85 | 10 | 12 | 2100*1530 | 2250*1750*1850 | 2250 |
SLFT1512 | 1500 | 1.85 | 12 | 14 | 2550*1530 | 2250*1762*1850 | 2900 |
SLFT1514 | 1500 | 1.96 | 14 | 16 | 2816*1600 | 3045*1852*1960 | 3400 |
Features of scissor lift table :
• The lifting structure is made of high-strength manganese steel rectangular pipe,, large carrying capacity, stable lifting and simple maintenance
• With safety protection device to prevent overload;
• With safety protection valve, it can effectively prevent the hydraulic pipeline from rupturing; it has strong adaptability and can be used in harsh environments and general explosion-proof places
• High safety, adopting upper and lower double-control panel with safe low-voltage operation buttons, equipped with emergency lowering device, which can be lowered in an emergency when the power is cut to ensure safety;
• It is widely applicable and suitable for customers who have high-altitude operations requirements such as factory workshops, squares, lobbies, airports, and parks etc.
If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

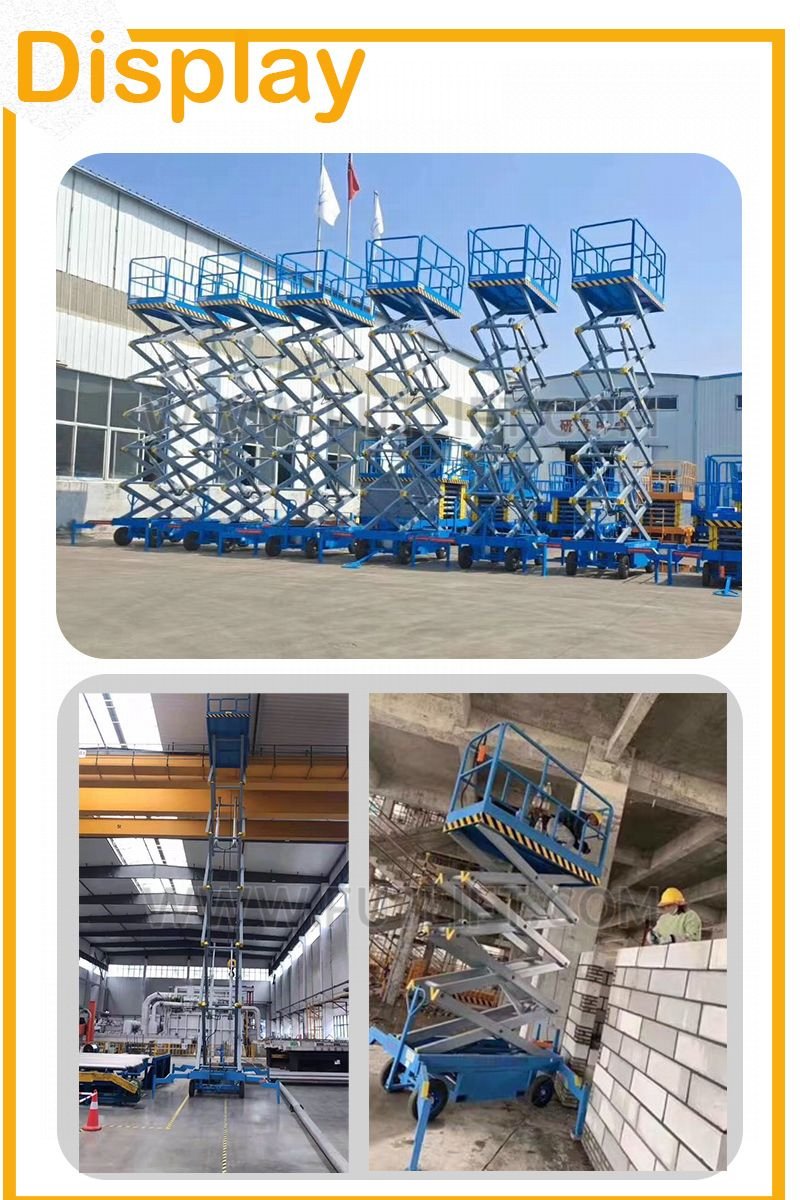

Photo Display
、
