Product Description

Technical Parameters

Model No.ALFT5-1HALFT6-1HALFT8-1HALFT9-1HALFT10-1HALFT12-1H
Max.Platform Height5m6m8m9m10m12m
Max Lifting Height7m8m10m11m12m14m
Load Capacity150kg150kg150kg150kg136kg120kg
Platform Size0.67*0.66m0.67*0.66m0.67*0.66m0.67*0.66m0.67*0.66m0.67*0.66m
Outrigger coverage1.7*1.7m1.7*1.7m1.6*1.6m1.7*1.7m1.9*1.7m2.3*1.9m
Overall size1.24*0.74*1.99m1.24*0.74*1.99m1.36*0.74*1.99m1.4*0.74*1.99m1.42*0.74*1.99m1.46*0.81*2.68m
Net Weight300kg320kg345kg365kg385kg460kg
Motor power0.75kw0.75kw0.75kw0.75kw0.75kw0.75kw


Main specifications and features

Platform height: 5M to 12M

• Working loading capacity: 120kg~150kg

• Leveling outrigger with safety lock

• Control pannel with anti-misoperation button,high safety when operation

• Emergency lowering system and emergency stop button

• Tubing anti-explosion function

• Standard forklift hole for easy loading

• Equipped with side wheels and handle for easy loading to truck by one person

If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

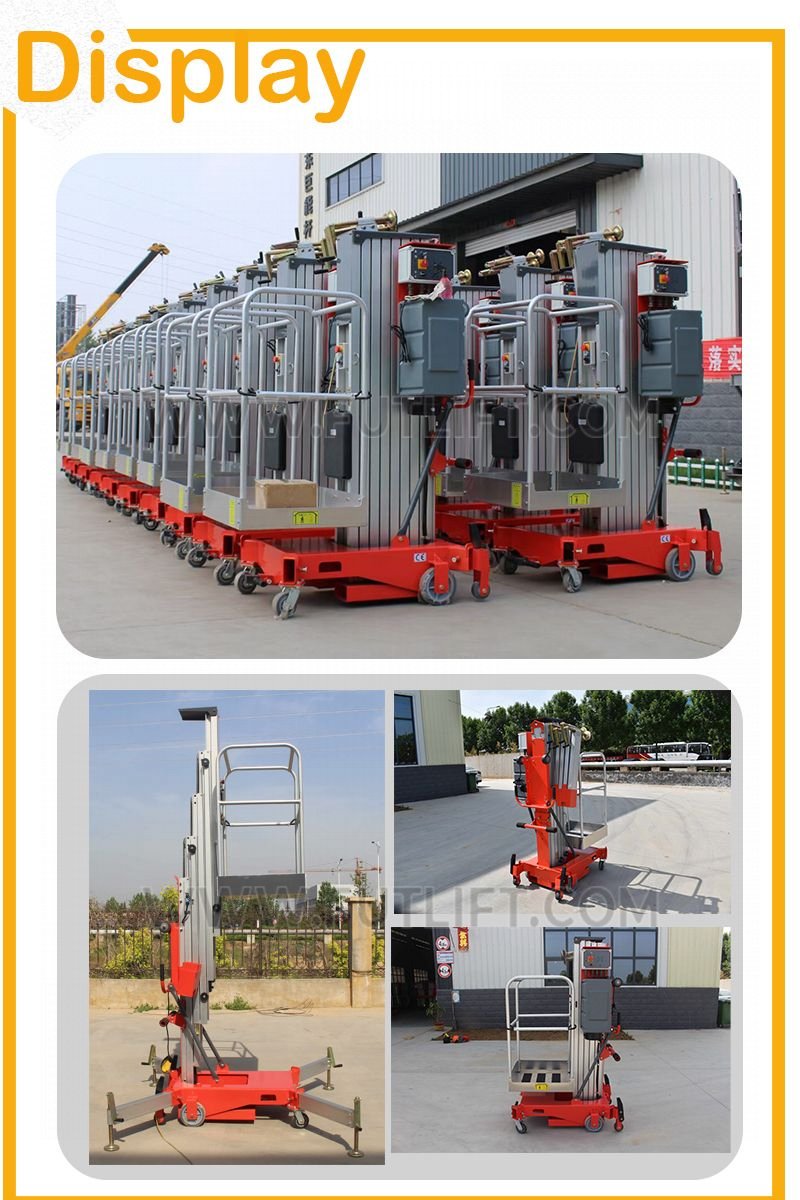

Photos Display
