Technical Parameters
Model | SLFT0345-H | SLFT0306-H | SLFT0375-H | SLFT0390-H |
Loading Capacity(kg) | 300 | 300 | 300 | 300 |
Max Platform height(mm) | 4500 | 6000 | 7500 | 9000 |
Mini Platform height(mm) | 960 | 1080 | 1600 | 1750 |
Platform Size(mm) | 1780*840 | 1780*840 | 2000*1000 | 2000*1000 |
Lifting time(s) | 43 | 49 | 62 | 83 |
Motor( kw) | 1.5 | 1.5 | 1.5 | 2.2 |
Voltage(V\Hz) | 380\50 | 380\50 | 380\50 | 380\50 |
Net Weight(kg) | 550 | 850 | 1270 | 1500 |
Overall Size (guardrails folded) | 1880*990*960 | 1880*990*1080 | 2100*1250*1600 | 2100*1250*1750 |
|
Model | SLFT0503-H | SLFT0545-H | SLFT0506-H | SLFT0509-H |
Loading Capacity(kg) | 500 | 500 | 500 | 500 |
Max Platform height(mm) | 3000 | 4500 | 6000 | 9000 |
Mini Platform height(mm) | 960 | 960 | 1080 | 1750 |
Platform Size(mm) | 1150*700 | 1780*840 | 1780*840 | 2000*1000 |
Lifting time(s) | 18 | 45 | 50 | 85 |
Motor( kw) | 0.75 | 1.5 | 1.5 | 2.2 |
Voltage(V\Hz) | 380\50 | 380\50 | 380\50 | 380\50 |
Net Weight(kg) | 450 | 560 | 860 | 1600 |
Overall Size (guardrails folded) | 1250*850*960 | 1880*990*960 | 1880*990*1080 | 2100*1250*1750 |
|
|
|
|
|
Model | SLFT0511-H | SLFT0512H | SLFT0514-H | SLFT0516-H |
Loading Capacity(kg) | 500 | 500 | 500 | 500 |
Max Platform height(mm) | 11000 | 12000 | 14000 | 16000 |
Mini Platform height(mm) | 1750 | 1810 | 1940 | 2300 |
Platform Size(mm) | 2100*1200 | 2400*1350 | 2600*1500 | 2600*1500 |
Lifting time(s) | 92 | 106 | 135 | 140 |
Motor( kw) | 2.2 | 3 | 4 | 4 |
Voltage(V\Hz) | 380\50 | 380\50 | 380\50 | 380\50 |
Net Weight(kg) | 1750 | 2000 | 2800 | 3500 |
Overall Size (guardrails folded) | 2200*1450*1750 | 2500*1600*1810 | 2700*1750*1940 | 2700*1750*2300 |
Main specifications and features
• Platform height: From 4.5m to 18m, popular 6m,8m,9m,14m
• Working loading capacity: 300kg 500kg 1000kg
• The electrical control box is designed to be rain-proof, so you can rest assured even if you use it outdoors
• Optional extendable platform: greatly increase the working range of the operator
If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

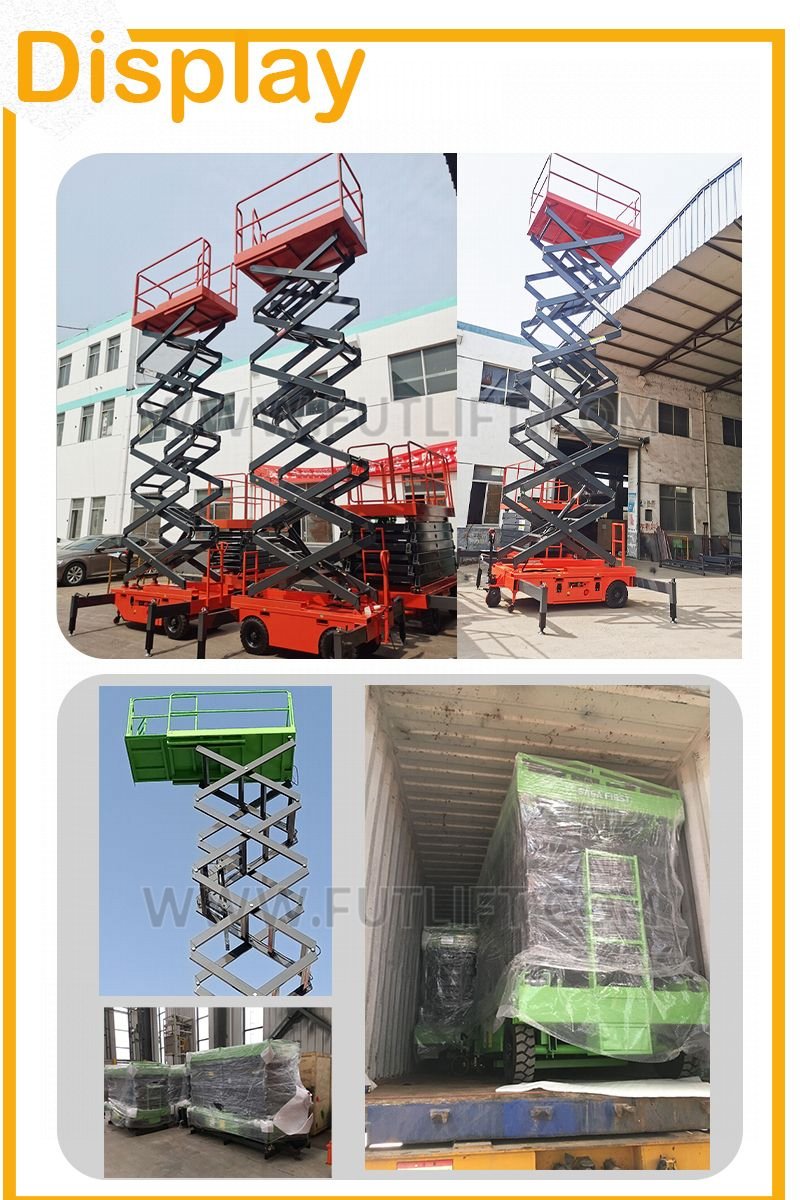

Photo Display
