Product Description

Technical Parameters

Model No.ALFT5-1ALFT6-1ALFT8-1ALFT9-1ALFT10-1
Max.Platform Height5m6m8m9m10m
Max Working Height7m8m10m11m12m
Load Capacity150kg150kg150kg150kg130kg
Platform Size0.6*0.55m0.6*0.55m0.6*0.55m0.6*0.55m0.6*0.55m
Outrigger coverage1.7*1.67m1.7*1.67m1.7*1.67m1.93*1.77m1.93*1.77m
Overall size1.36*0.85*1.99m1.36*0.85*1.99m1.36*0.85*1.99m1.45*0.85*1.99m1.45*0.85*1.99m
Net Weight315kg325kg378kg400kg430kg
Motor power0.75kw0.75kw0.75kw0.75kw1.1kw


Main specifications and features

Platform height: 5M to 10M

• Working loading capacity: 150kg

• Control pannel with anti-misoperation button,high safety when operation

• Emergency lowering system and emergency stop button

• Tubing anti-explosion function

• Standard forklift hole for easy loading

If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

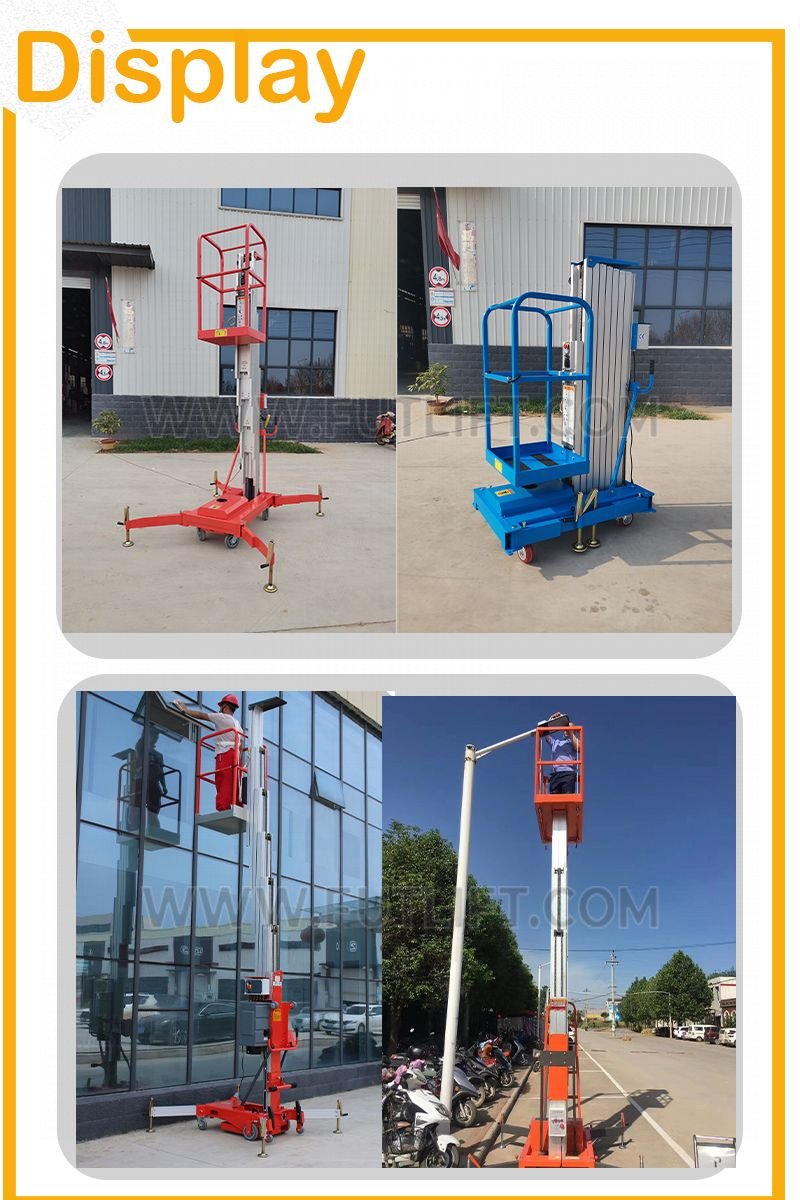

Photos Display
