Product Description

Technical Parameters

ModelALFT6-2HALFT8-2HALFT9-2HALFT10-2HALFT12-2HALFT14-22HALFT16-2H
Max Platform Height6m8m9m10m12m14m16m
Max Working Height8m10m11m12m14m16m18m
Load Capacity300kg300kg250kg250kg200kg200kg150kg
Platform Size1.45*0.7m1.45*0.7m1.45*0.7m1.45*0.7m1.8*0.7m1.8*0.7m1.8*0.7m
Outrigger coverage2.45*1.75m2.45*1.75m2.45*1.75m2.45*1.75m2.7*2.8m2.7*2.8m2.7*2.8m
Overall size1.45*0.81*1.99m1.45*0.81*1.99m1.45*0.81*1.99m1.45*0.81*1.99m1.88*0.81*2.68m1.88*0.81*2.68m1.88*0.81*2.68m
Net Weight610kg645kg680kg715kg750kg892kg996kg


Main specifications and features

Platform height: 6M to 14M

• Working loading capacity: 150kg~300kg

• Leveling outrigger with safety lock

• Control pannel with anti-misoperation button,high safety when operation

• Emergency lowering system and emergency stop button

• Tubing anti-explosion function

• Standard forklift hole for easy loading

• Equipped with side wheels and handle for easy loading to truck by one person

If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

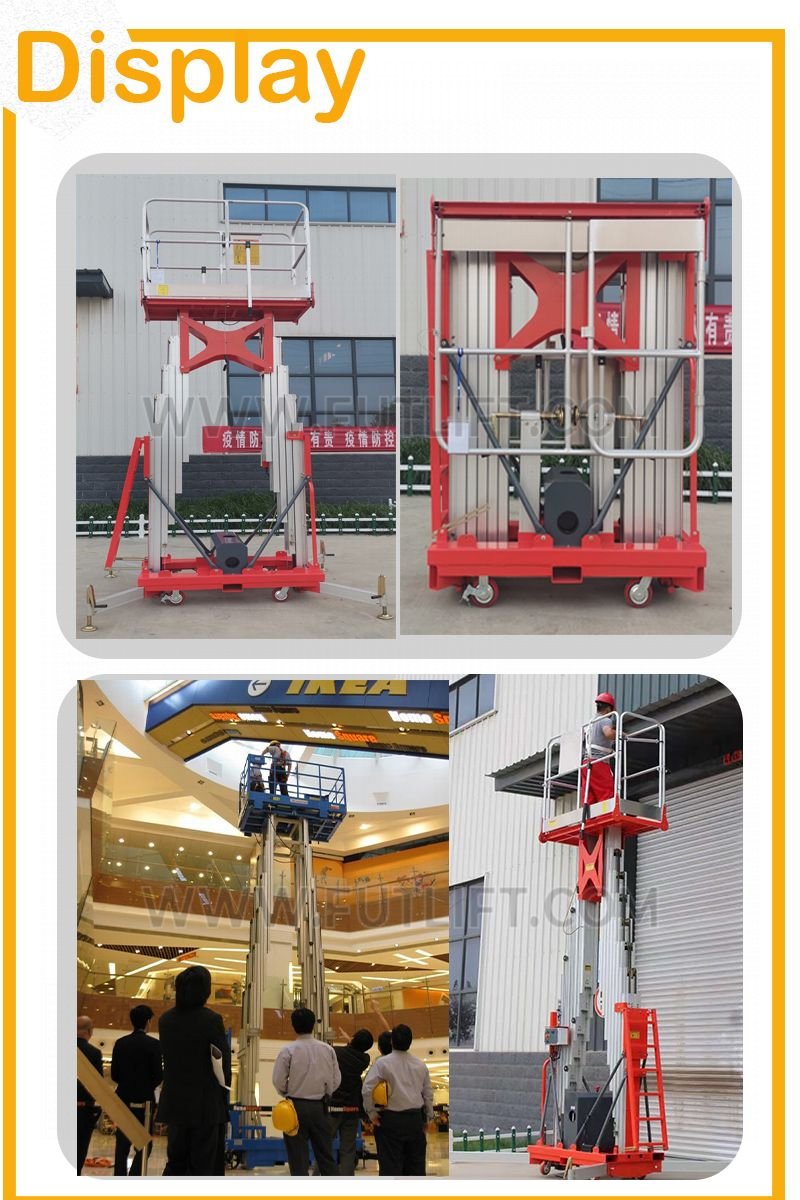

Photos Display
