Technical Parameters
Model | SEMFT1516 | SEMFT1520 | SEMFT1525 | SEMFT1530 | SEMFT1535 |
Load Capacity | 1500kg | 1500kg | 1500kg | 1500kg | 1500kg |
Capacity at Max Height | 1500kg | 1200kg | 1050kg | 900kg | 750kg |
Max Fork Height | 1600mm | 2000mm | 2500mm | 3000mm | 3500mm |
Machine Height | 2045mm | 2450mm | 2950mm | 3450mm | 3950mm |
Overall Height | 1990mm | 1490mm | 1740mm | 1990mm | 2240mm |
Overall Length | 1860mm | 1860mm | 1860mm | 1860mm | 1860mm |
Overall Width | 800mm | 800mm | 800mm | 800mm | 800mm |
Fork Length | 1150mm | 1150mm | 1150mm | 1150mm | 1150mm |
Fork Width | 560/680mm | 560/680mm | 560/680mm | 560/680mm | 560/680mm |
Min Fork Height | 90mm | 90mm | 90mm | 90mm | 90mm |
Ground Clearance | 30mm | 30mm | 30mm | 30mm | 30mm |
Loading Center | 500mm | 500mm | 500mm | 500mm | 500mm |
Turning Radius | 1280mm | 1280mm | 1280mm | 1280mm | 1280mm |
Main specifications and features
• Fork height: 1.6m,2m,2.5m,3m,3.5m
• Safety load capacity: 1500kg
• Can be easily transported by one person, and can lift all kinds of light and heavy materials
• High-quality hydraulic pump station, stable operation, long-lasting power
• Innovative design with low consumption and high reliability
• Long handle, offset operation, convenient and safe
• Compact design, ultra-small working radius
• Bias control greatly improves the field of vision
• Built-in charger, no need for special charging equipment
If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

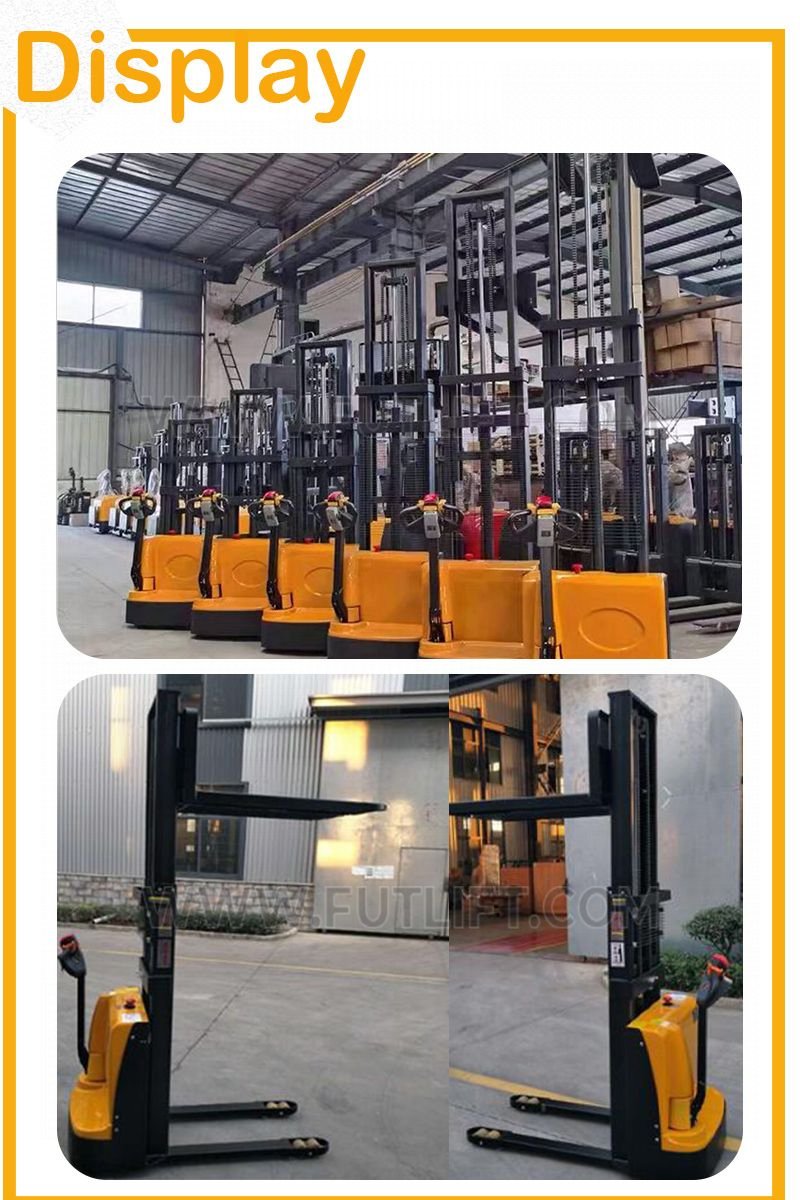

Photos Display
