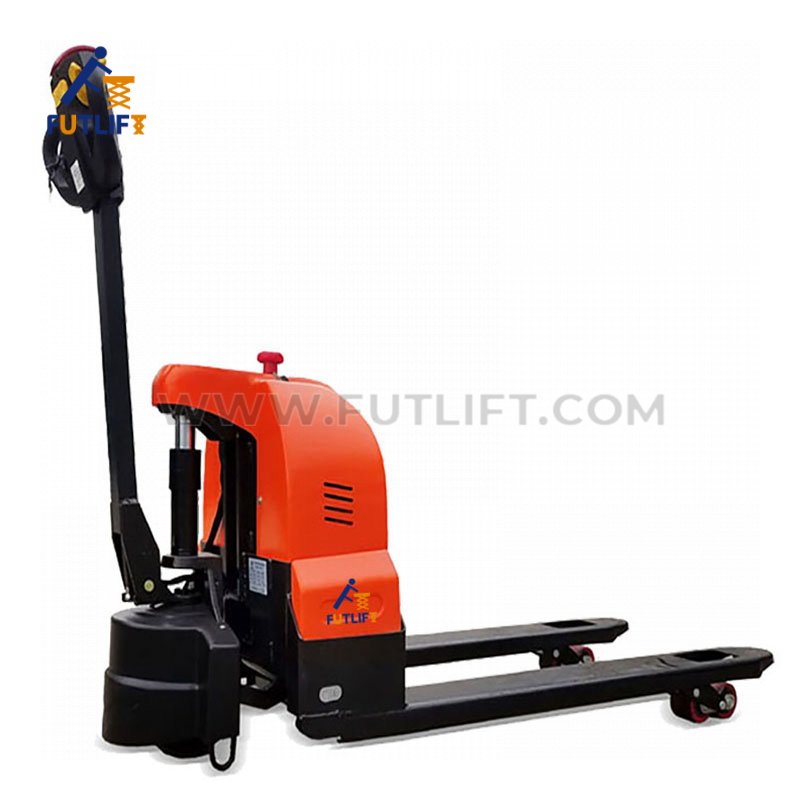

Product Description

Technical Parameters

Model( lithium battery)PTFT20E
CapacityKg2000
Loading CenterC(mm)600
Max Fork HeightH(mm)200
Ground ClearanceH1(mm)85
Fork Size(mm)51*165*1150
Fork Width(mm)560/685
Overall LengthL(mm)1660
Overall WidthS(mm)560/685
Turning RadiusWa(mm)1490
Aisle width (pallet 1000*1200)(mm)2237
Aisle width (pallet 800*1200)(mm)2147
Wheel BaseL(mm)1330
Climbing Gravity(Full/Empty Loading)%3/8
Driving Speed(Full/Empty Loading)km/ h4.3/4.5
Lifting Speed(Full/Empty Loading)mm/ s35/ 40
Lowering Speed(Full/Empty Loading)mm/ s45/ 35


Main specifications and features

• Safety load capacity: 2000kg

• Fork length:1150mm

• Can be easily operated by one person, and can lift all kinds of light and heavy materials

• Handle design accords with ergonomic principle

• High-quality cylinder, heavy-duty design, Integral casting cylinder, beautiful appearance, sturdy and durable

• Suitable for areas where the forklift can't enter to operate.


If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.
