Product Description

Technical Parameters

Model TypeMALFT-3.5MALFT-5MALFT-6.5MALFT-7.9
Lifting Height(m)3.556.57.9
Load Capacity(kg)340320300280
Fork Size(m)0.51*0.710.51*0.710.51*0.710.51*0.71
Net Weight(kg)145170190210
Overall Length(m)1.481.481.481.48
Overall Width(m)0.820.820.820.82
Overall height(m)2.12.12.12.1
Operationmanualmanualmanualmanual
Packing size(m)850*750*2030mm(without pallet) 1200*800*2150mm(with pallet)


Main specifications and features

● Fork height: 3.5m, 5m, 6.5m and 7.9m

● Safety load capacity: 280kg~340kg

● Can be easily transported by one person, and can lift all kinds of light and heavy materials

● Support legs with wheels and can be folded ,easy storage and loading

● Manual lifting,equipped with manual lever and metal wire rope

● Used more by decoration and exhibition companies.

If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

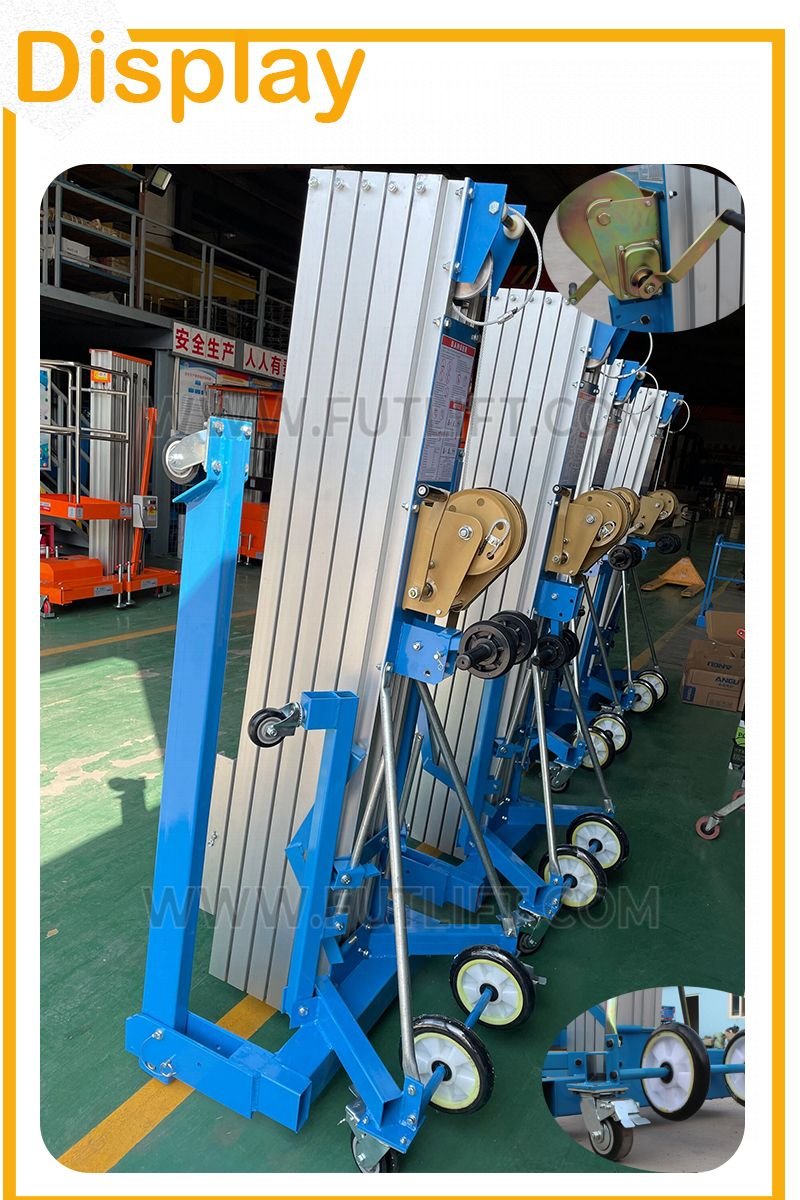

Photos Display
