Technical Parameters
Model(Single Frame) | MEMFT1016-1 | MEMFT1516-1 | MEMFT2016-1 | MEMFT2020-1 | MEMFT3016-1 |
Capacity | kg | 1000 | 1500 | 2000 | 2000 | 3000 |
Loading Center | mm | 400 | 400 | 400 | 400 | 400 |
Min Fork Height | mm | 90 | 90 | 90 | 90 | 90 |
Max Fork Height | mm | 1600 | 1600 | 1600 | 2000 | 1600 |
Fork Length | mm | 1000 | 1000 | 1000 | 1000 | 900 |
Fork Width | mm | 300-850 | 320-850 | 320-850 | 680 | 680 |
Min Turning Radius | mm | 1250 | 1250 | 1250 | 1250 | 1250 |
Wheel Base | mm | 1100 | 1100 | 1100 | 1100 | 1100 |
Overall Length | mm | 1380 | 1380 | 1380 | 1380 | 1400 |
Overall Width | mm | 850 | 850 | 850 | 850 | 850 |
Overall Height | mm | 2100 | 2100 | 2100 | 2400 | 2100 |
Net Weight | kg | 255 | 265 | 290 | 330 | 365 |
Optional 3000kg 2m (MEMFT3020-1) |
Model (Double Frame) | MEMFT1020-2 | MEMFT1025-2 | MEMFT1030-2 | MEMFT2020-2 |
Capacity | kg | 1000 | 1000 | 1000 | 2000 |
Loading Center | mm | 400 | 400 | 400 | 400 |
Min Fork Height | mm | 90 | 90 | 90 | 90 |
Max Fork Height | mm | 2000 | 2500 | 3000 | 2000 |
Fork Length | mm | 1000 | 1000 | 1000 | 1100 |
Fork Width | mm | 300-850 | 320-850 | 320-850 | 680 |
Min Turning Radius | mm | 1250 | 1250 | 1250 | 1250 |
Wheelbase of front and rear wheels | mm | 1100 | 1100 | 1100 | 1100 |
Front Wheel Base | mm | 210 | 210 | 210 | 210 |
Overall Length | mm | 1340 | 1340 | 1340 | 1340 |
Overall Width | mm | 850 | 850 | 850 | 850 |
Overall Height | mm | 1560 | 1810 | 2060 | 1560 |
Net Weight | kg | 340 | 355 | 370 | 340 |
Main specifications and features
• Fork height: 1.6m,2m,2.5m,3m
• Safety load capacity: 1000kg,1500kg,2000kg,3000kg
• Comply with European EN 1757-1:2001 standard
• High-quality imported Italian hydraulic cylinders are safe and labor-saving.
• High-grade national standard high-quality C-shaped steel door frame, safer and longer-lasting use;
• Provide optional adjustable fork: the adjustable range of fork width is 320-850mm
• Can be easily transported by one person, and can lift all kinds of light and heavy materials
• High-quality hydraulic pump station, stable operation, long-lasting power
• Innovative design with low consumption and high reliability
If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

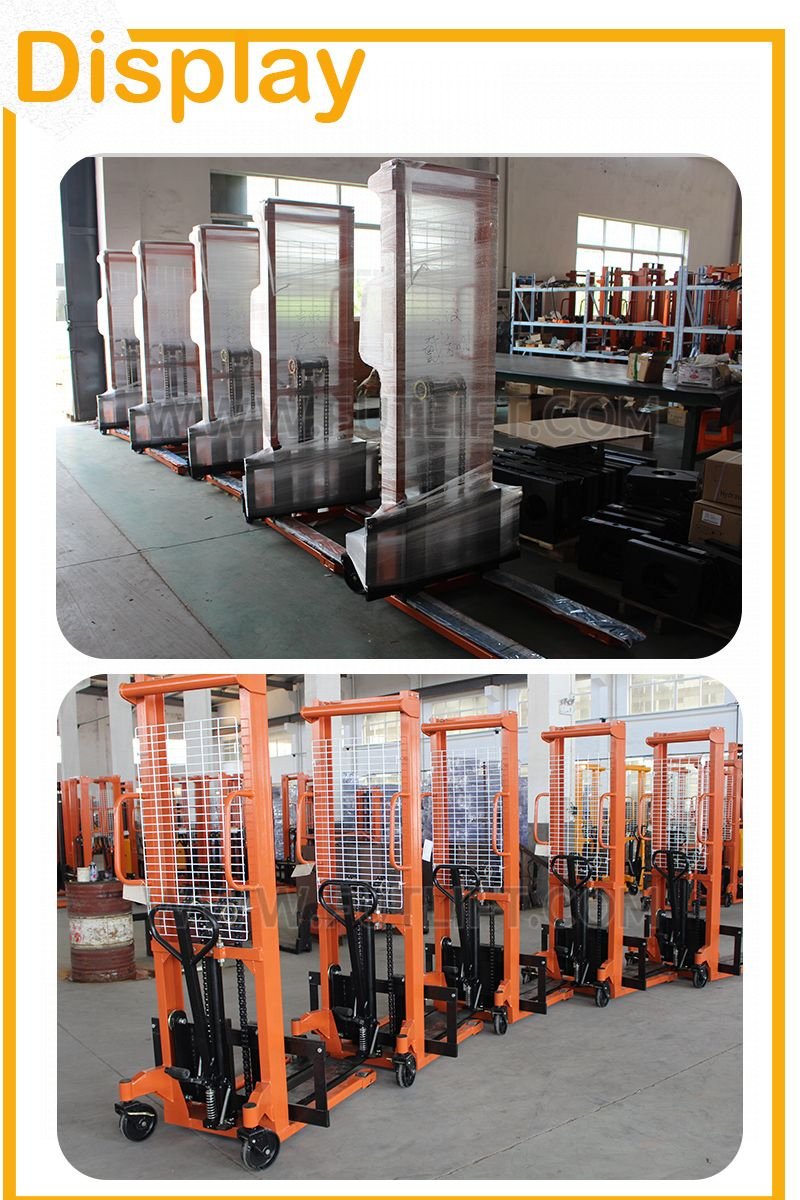

Photos Display
