Product Description

Technical Parameters

Model

MSFT3.0

MSFT3.9

MSFT4.8

Loading capacity

kg

300

300

300

Max platform height

mm

3000

3900

4800

Min platform height

mm

630

700

780

Max working height

mm

5000

5900

6800

Platform size

mm

1170×600

1170×600

1170×600

Motor

v/kw

12VDC/0.8kw

12VDC/0.8kw

12VDC/0.8kw

Battery

v/Ah

12V/120Ah

12V/120Ah

12V/120Ah

Charger

v/A

12V/10A

12V/10A

12V/10A

Lifting Time

s

33/30

40/30

40/30

Overall length

mm

1300

1300

1300

Overall width

mm

760

760

760

Overall height

mm

1650

1750

1870

Overall weight

kg

366

420

450


Main specifications and features

● Platform height: 3m/3.9m/4.8m

● Working loading capacity: 300kg

● Battery driven, low noise, no pollution

● The turning radius is 0, which is suitable for working in small spaces


If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

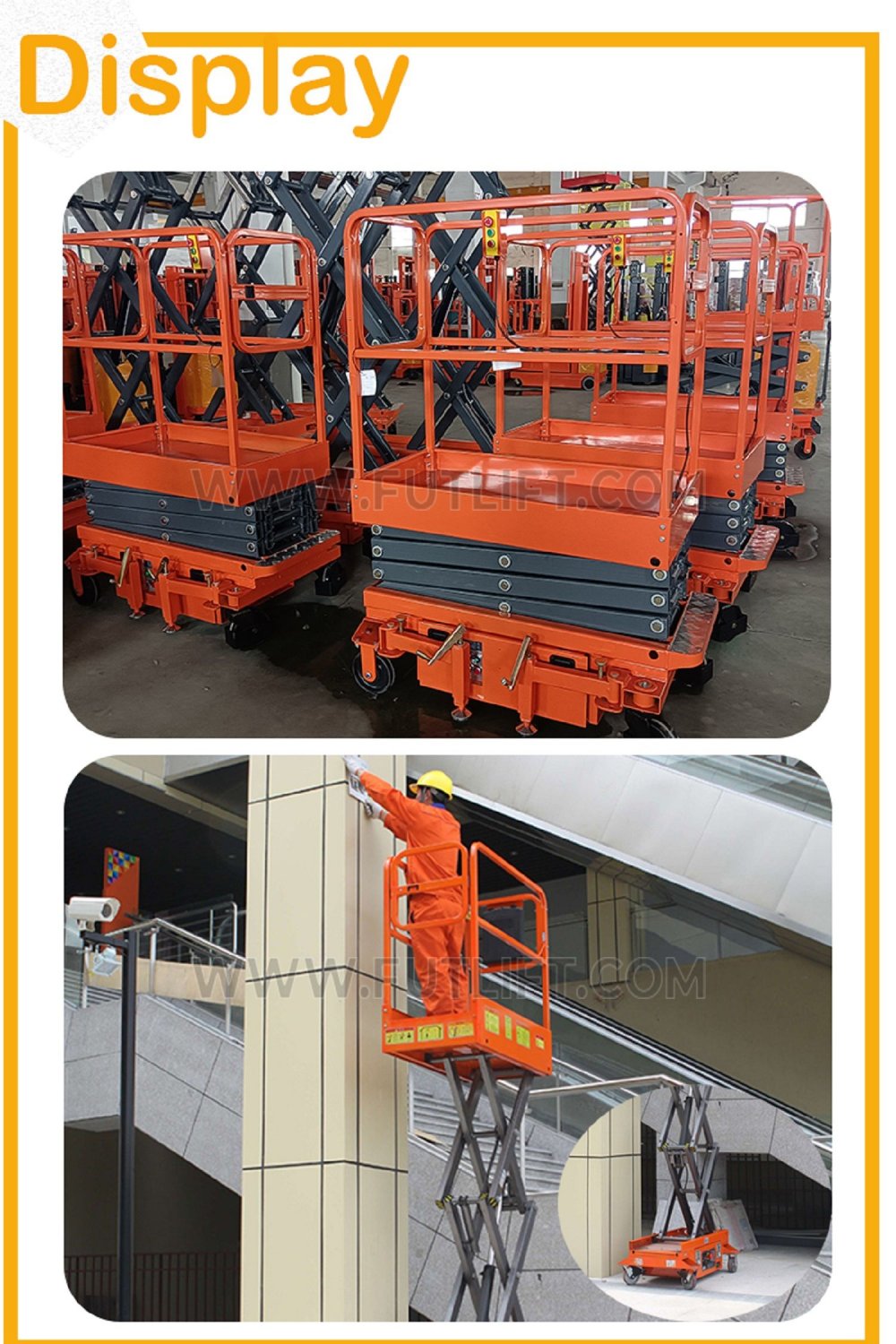

Photos Display
