Product Description

Technical Parameters

Model

FMSFT3.0

FMSFT3.9

FMSFT4.8

Loading Capacity

kg

300

300

300

Max Working Height

mm

5000

5900

6800

Max Platform Height

mm

3000

3900

4800

Overall Length

mm

1180

1180

1180

Overall Width

mm

760

760

760

Overall Height

mm

1830

1930

2030

Platform Size

mm

1170x600

1170x600

1170x600

Min Ground Clearance (mm)

mm

60

60

60

Min Turning Radius (mm)

mm

1200

1200

1200

Battery

v/Ah

2x12/60

2x12/60

2x12/60

Charger

v/A

24/10

24/10

24/10

Max Climbing Ability

%

10-15

10-15

10-15

Max Allowable Angle of Work

/

            2°

Overall Weight

kg

490

600

          600


Main specifications and features

Platform height: 3m,3.9m and 4.8m

• Working loading capacit: 300kg

• Battery driven, low noise, no pollution, suitable for various operating environment points

• Small body: easy to store, transport, access standard doors, elevator doors,suitable for working in small spaces

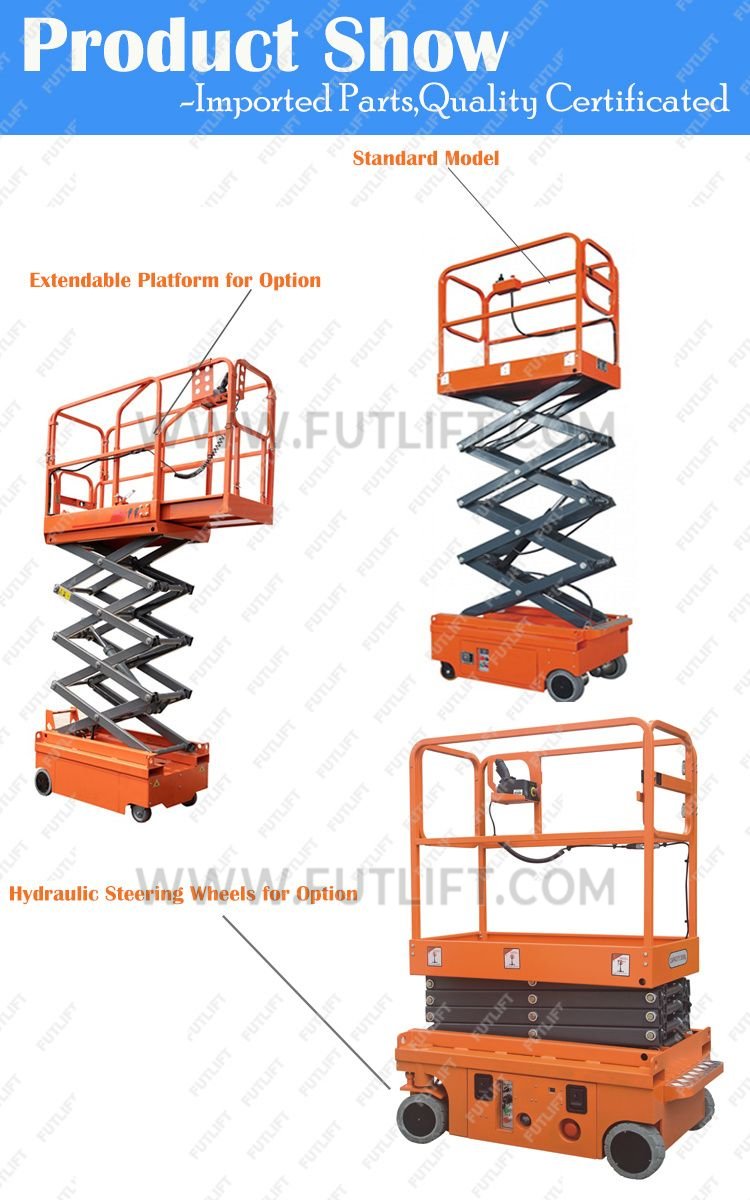

• Optional extendable platform: greatly increase the working range of the operator


If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

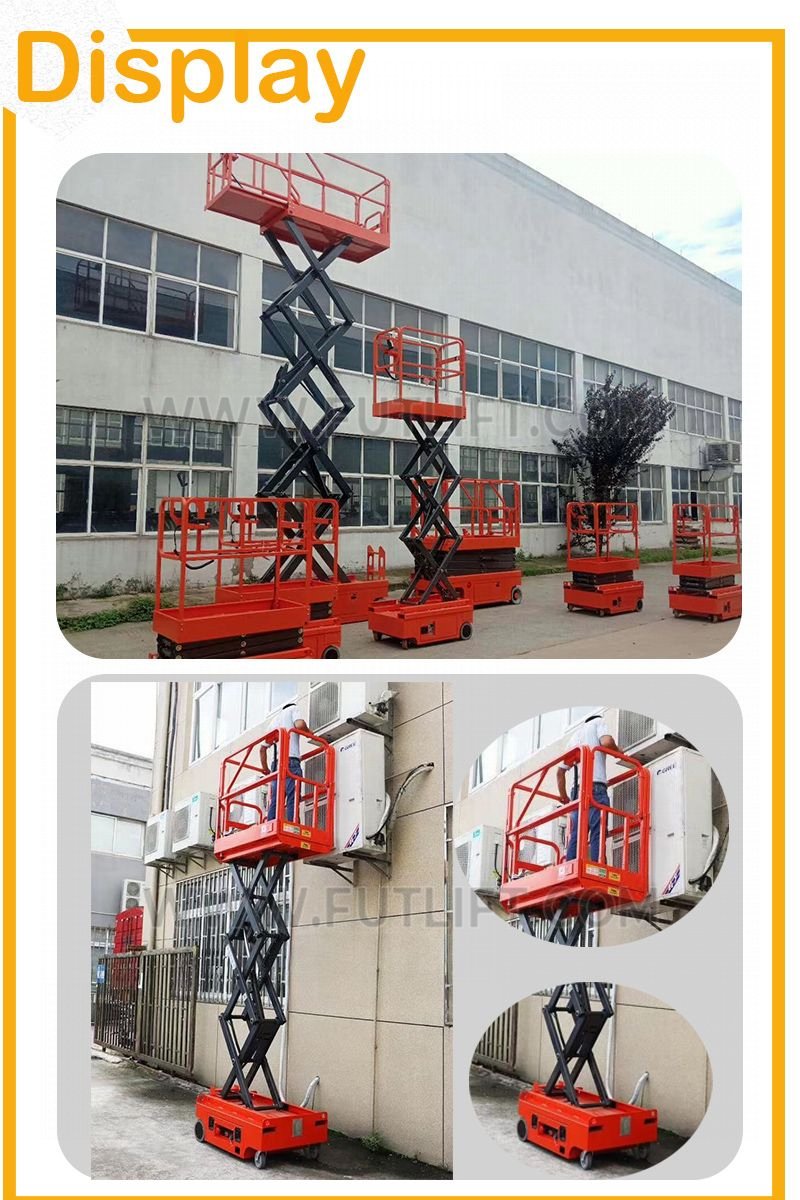

Photo Display
