Technical Parameters
Model No. |
| SALFT7.5 | SALFT9 |
Max.Platform Height | mm | 7500 | 9000 |
Max Machine Height | mm | 9000 | 10500 |
Min Platform Height | mm | 680 | 680 |
Ground Clearance | mm | 20 | 20 |
Load Capacity | kg | 220 | 150 |
Platform Size | mm | 1000*700*1100 | 1000*700*1100 |
Overall Size(L*W*H) | mm | 1700*1000*2000 | 1700*1000*2100 |
Battery | V/Ah | 2X12/150 | 2X12/150 |
Pothole Protection System | / | Mechanical control | Mechanical control |
Net weight | kg | 1100 | 1250 |
Main specifications and features
• Platform height: 7.5M to 9M
• Working loading capacity: 150kg~220kg
• Battery:24v/150Ah
Standard configuration
• Proportional control
• Automatic pothole protection system
• Non-marking tires
• Automatic brake system
• Emergency descent system
• Emergency stop button
• Oil pipe explosion-proof system
• Fault diagnosis system
• Tilt protection system
• Buzzer
• Horn
• Transport standard forklift hole
• Charging protection system
• Strobe light
If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

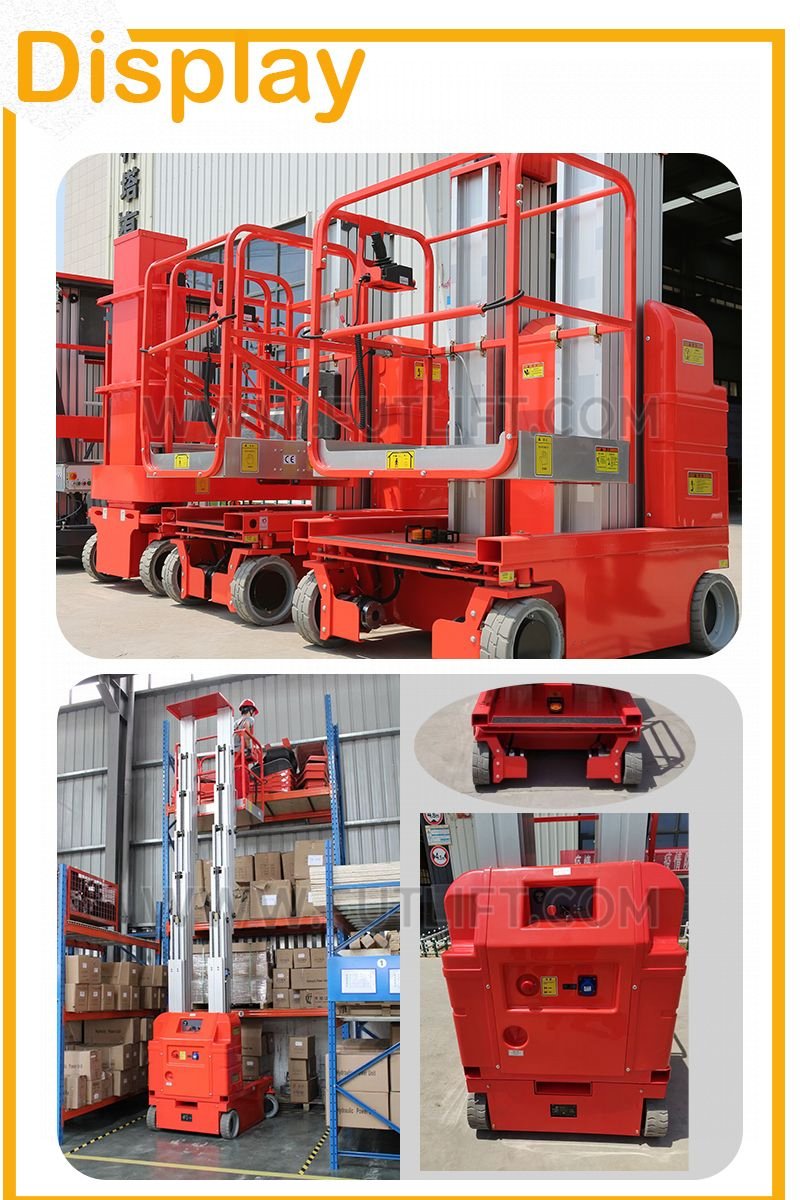

Photos Display
