Technical Parameters
Model |
| LOPFT0215 | LOPFT0220 |
Load Capacity (kg) (Included Operator) | (kg) | 200 | 200 |
Min Platform Height (mm) (For Goods) | (mm) | 670 | 850 |
Max Platform Height (mm) (For Goods) | (mm) | 1500 | 2000 |
Min Platform Height (mm) (For People) | (mm) | 270 | 320 |
Max Platform Height (mm) (For People) | (mm) | 970 | 1500 |
Platform size (mm) (For Goods) | (mm) | 600×550 | 600×550 |
Min Turning Radius | (mm) | 1200 | 1200 |
Net Weight | (kg) | 150 | 170 |
Main specifications and features
• Platform height:1.5m,2.00m
• Capacity:200kg
• Hydrapp pump station imported from Italy, with stable and powerful lifting
• Equipped with Delphi maintenance-free battery, long lasting power
• With multiple safety distribution protection devices to ensure the safety of operator
• Conforms to European EN280 standard
If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

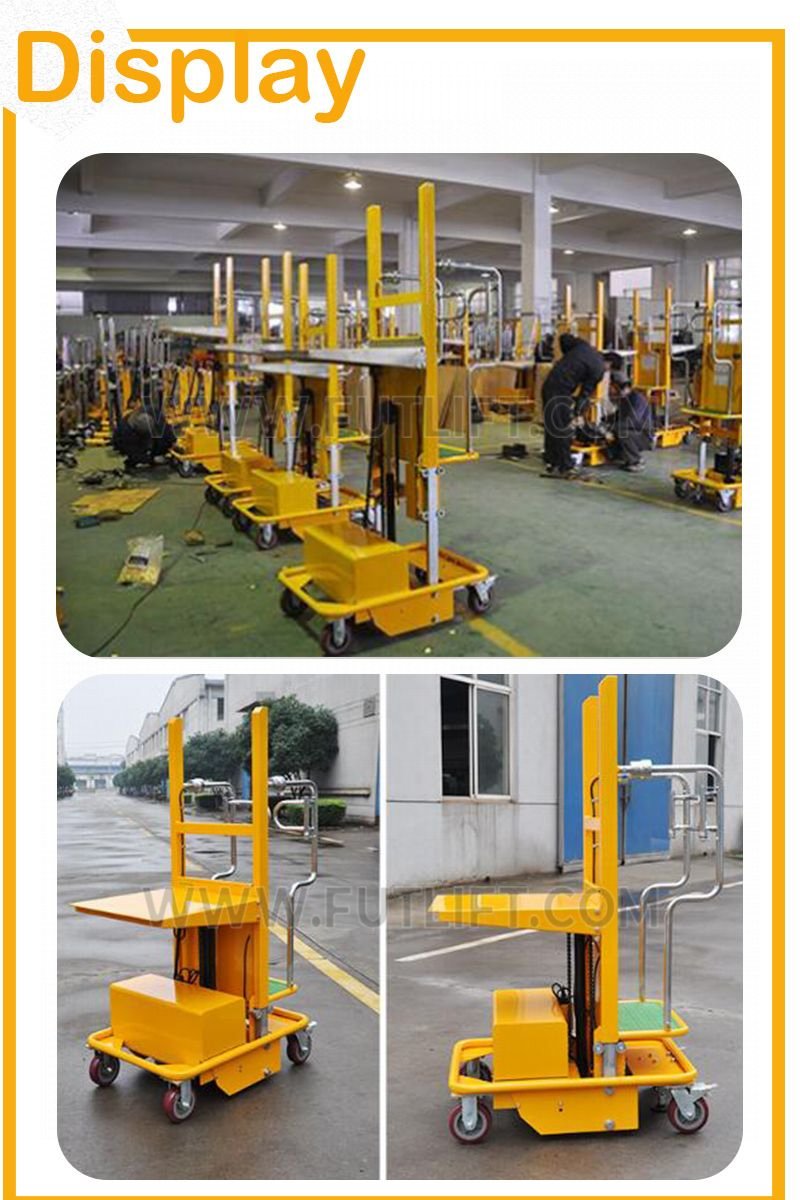

Photos Display
