Technical Parameters
Model | FCFT-1200 | RFCFT900 - Electric rotation 240° |
Horizontal Reach ( Extended 2 stages) | 1280+610+610mm | 1280mm+610mm+610mm |
Load Capacity | 1200kg/600kg/300kg | 900kg/450kg/250kg |
Max Lifting Height | 3570mm | 3180mm |
Min Lifting Height | 960mm | 1410mm |
Retracted size(W*L*H) | 1920*760*1600mm | 2000*1854*1550mm |
Main specifications and features
• Safety load capacity: 900kg-1200kg
• Lifting height:3.18m-3.57m
• Can be easily operated by one person, and can lift all kinds of light and heavy materials
• High-quality cylinder, heavy-duty design, easy to adjust the arm distance through the cylinder
• With safety valve, foldable design and small package size
• Suitable for areas where the forklift can't enter to operate.
If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

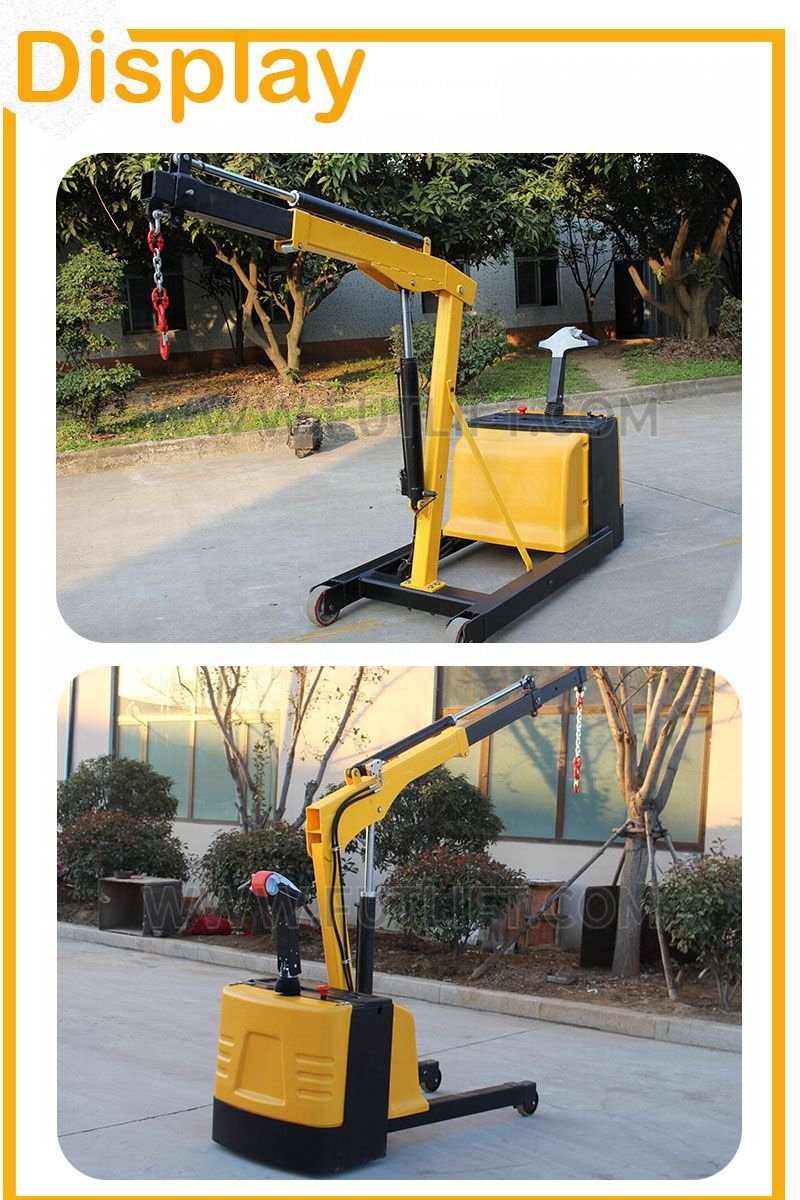

Photos Display
