Technical Parameters
Model | DPFT30 | DPFT50 | DPSFT50 | DPSFT80 | DPSFT100 |
Lifting Capacity | kg | 300 | 500 | 500 | 800 | 1000 |
Min Platform Height | mm | 280 | 280 | 350 | 450 | 500 |
Max Platform Height | mm | 900 | 900 | 1300 | 1500 | 1700 |
Platform Size | mm | 950*500*50 | 950*500*50 | 950*500*50 | 1200*610*60 | 1200*610*80 |
Wheels | mm | φ125 | φ125 | φ125 | φ150 | φ150 |
Motor | v/kw | 12/0.8 | 12/0.8 | 12/0.8 | 12/1.6 | 12/1.6 |
Battery | Ah | 60 | 60 | 60 | 120 | 120 |
Net Weight | kg | 110 | 110 | 150 | 260 | 290 |
Main specifications and features :
• Good stability and low operating noise
• Choose high-quality thick steel, durable, wear-resistant and corrosion-resistant
• The surface of the lift table is electrostatic sprayed and adopts high temperature spraying line imported from Germany
• Heavy-duty design optional European imported brand pumping station
• There is a safety barrier device under the table top, when the table top descends and encounters obstacles to stop the descend
• Adopt anti-pinch scissor design to prevent pinch injury
• Widely used in manufacturing, maintenance and other industries,suitable for supporting the use of forklift/stacker/pallet trucks in warehousing, logistics, production lines and other places
If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

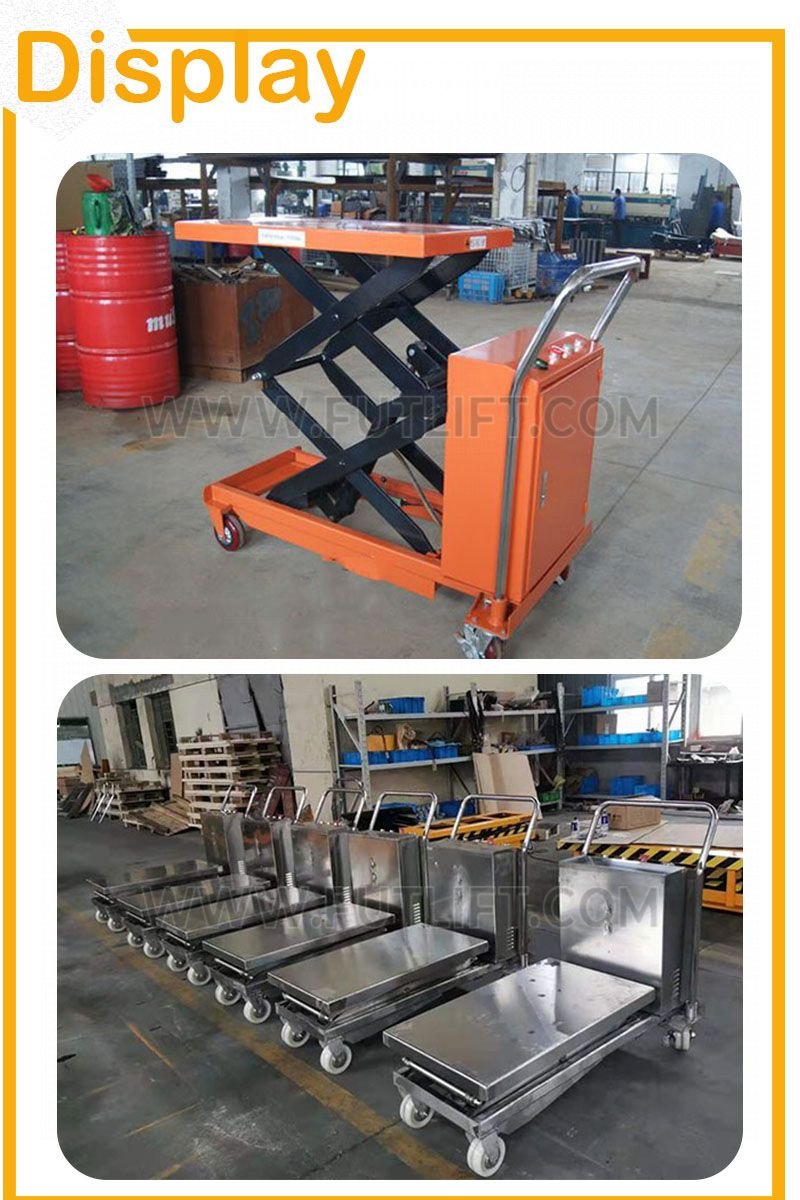

Photos Display
