Technical Parameters
Model (X Type) | XSC-FT400 | XSC-FT600 | XSC-FT800 | XSC-FT1000 | XSC-FT1200 |
Lifting Capacity | kg | 400 | 600 | 800 | 1000 | 1200 |
Cup Qty | / | 4 | 6 | 8 | 10 | 12 |
Single Cup Size | mm | 300 | 300 | 300 | 300 | 300 |
Rotation | / | 360°manual rotate | 360°manual rotate | 360°manual rotate | 360°manual rotate | 360°manual rotate |
Tilting | / | 90° manual | 90° manual | 90° manual | 90° manual | 90° manual |
Volte | V | DC12 | DC12 | DC12 | DC12 | DC12 |
Charger | V | AC220/110 | AC220/110 | AC220/110 | AC220/110 | AC220/110 |
Weight | kg | 70 | 90 | 100 | 110 | 120 |
Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 | 1900*1600*300 |
Model (H Type) | HSC-FT800 | HSC-FT1000 | HSC-FT1200 |
Lifting Capacity | kg | 800 | 1000 | 1200 |
Cup Qty | / | 8 | 10 | 12 |
Single Cup Size | mm | 300 | 300 | 300 |
Single Cup Lifting Capacity | kg | 100 | 100 | 100 |
Rotation | / | 360°manual rotate | 360°manual rotate | 360°manual rotate |
Tilting | / | 90° manual | 90° manual | 90° manual |
Volte | V | DC12 | DC12 | DC12 |
Charger | V | AC220/110 | AC220/110 | AC220/110 |
Weight | kg | 470 | 500 | 530 |
Packing Size | mm | 2800*1250*300 | 2800*1250*300 | 2800*1250*300 |
Extension Bar Length | mm | 600 | 600 | 600 |
Main specifications and features :
• The glass suction cup needs the cooperation of lifting equipment during use, and it can be used by simple hook connection without external power supply.
• The button control is reliable for suction and discharge, and the energy storage and pressure-keeping vacuum system has higher performance and can be continuously rotated 360; manual rotation function, adjustable suction cup position
• The extension rod can be assembled and unloaded, which can better adapt to the size and shape of various loads. It is used in glass production and processing, glass curtain walls, etc.
If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

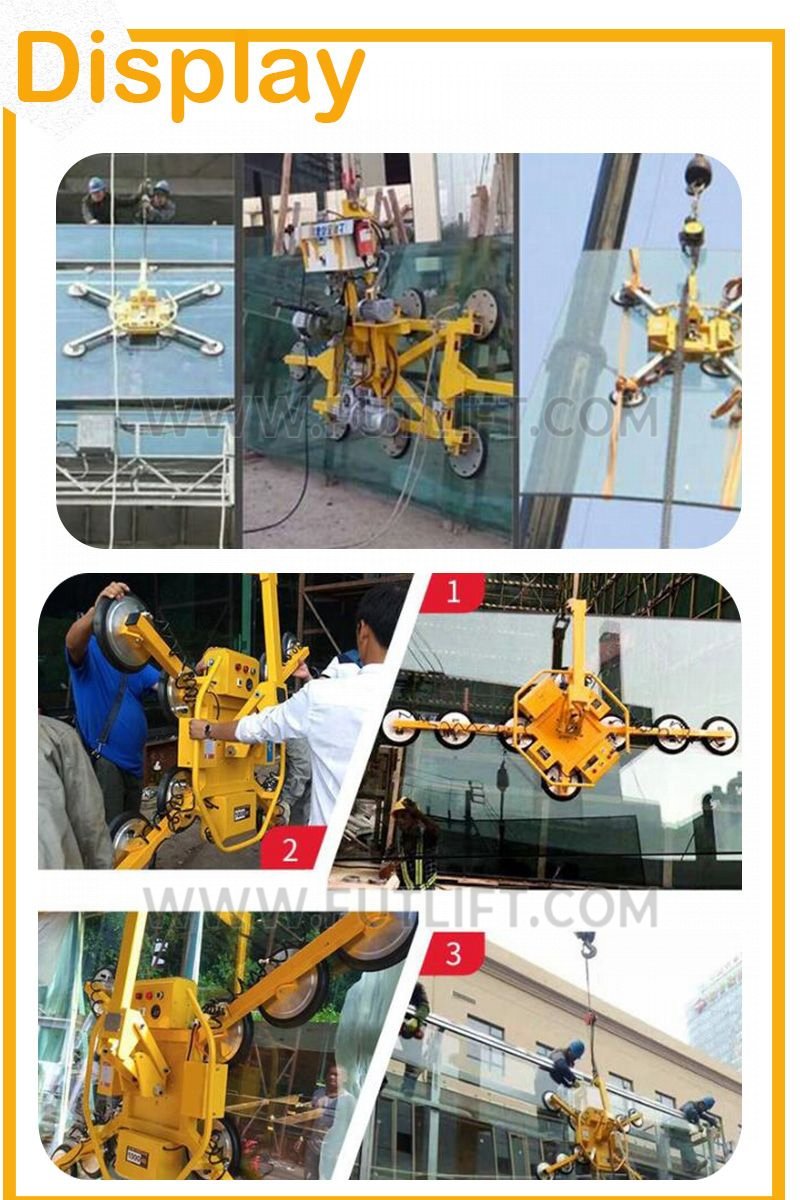

Photos Display
