Product Description

Technical Parameters

Model Type

WL-FT2510

WL-FT2515

WL-FT2525

WL-FT2530

WL-FT2535

WL-FT2540

Max. Platform Height

1000mm

1500mm

2500mm

3000mm

3500mm

4000mm

Load Capacity

250kg

250kg

250kg

250kg

250kg

250kg

N.W/G.W(kg)

350/400

450/500

700/800

780/850

850/950

880/1000

Machine Size(m)

2*1.43*1.3

2.5*1.43*1.3

3.5*1.43*1.3

4*1.43*1.3

4.6*1.43*1.3

5.1*1.43*1.3

Platform size

1430*1000mm skid proof checkered steel

Min Platform height

60mm

Speed

0.06~0.1m/s

Control voltage

24V/DC

Power Output

1.1~2.2KW

Entrance-Exit Way

90°or  180°,according to the requirement

Control Panel

A. One control panel on the platform

B. Install two column switches on ground, which can be fixed at any floor needed.

C. Remote control, user can operate lift within 20m.


Main specifications and features :

• Capacity:250kg, 300kg ,350kg

• Lifting height: 0.8m~6m, customized

• Working Condition: Both indoors and outdoors -20°~70°C

• Closed platform with cover is available,customized with half-enclosed or fully-enclosed glass cover,platform size accept special customization



If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

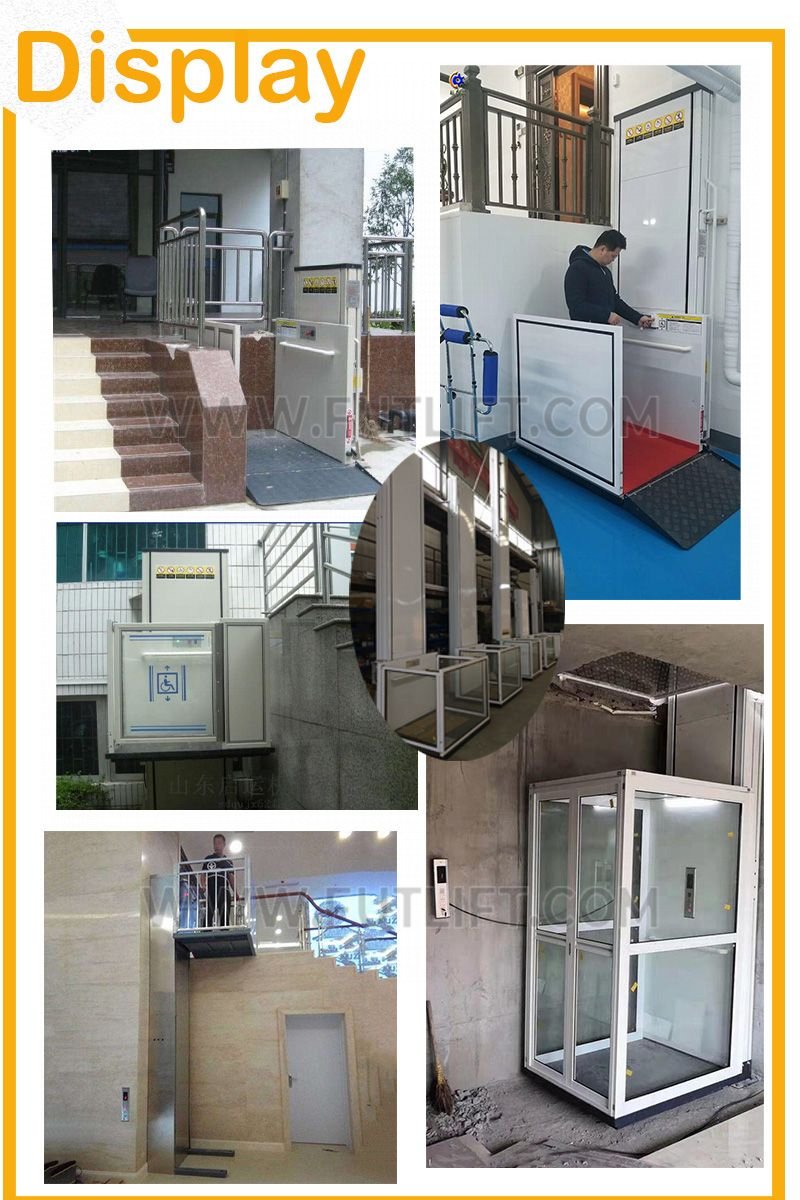

Photos Display
