Product Description

Technical Parameters

Model Type No.ABLFT-10BABLFT-12BABLFT-14BABLFT-16BABLFT-18BABLFT-20B
Working Height Maximum12 m14 m16.05 m17.8 m20 m21.9 m
Platform Height Maximum10 m12 m14.05 m15.8 m18 m19.9 m
working radius maximum5.8 m8 m8.1 m10 m10.8 m12.3 m
Lift capacity200kg200kg230kg230kg230kg230kg
Crossing height4.78 m5 m7.6 m7.6 m9.2 m9.2 m
Length( stowed)  4.35m5.3 m6.24 m7.9 m8.1 m9.2 m
Width (stowed)  1.5m2 m1.75 m2 m2.38 m2.38 m
Height(stowed)1.99 m2.05 m2 m2 m2.38 m2.34 m
Wheel base1.65 m2 m2 m2.2 m2.6 m2.6 m
Ground clearance  0.15 m0.2 m0.2 m0.2 m0.3 m0.3 m
Platform measurement  1.1*0.65 m1.1*0.65 m1.53*0.76 m1.53*0.76 m1.53*0.76 m1.53*0.76 m
Platform rotation355°355°355°355°355°355°
Platform LevelingAutomatic levelingAutomatic levelingAutomatic levelingAutomatic levelingAutomatic levelingAutomatic leveling
Total weight4800 kg5500 kg6270 kg6720 kg8080 kg8200 kg
Loading1*20GP1*20GP1*40’GP1*40’GP1*40’HQ1*40’HQ
Wheel*Drive*Steering4WD*2WS / 4WD*4WS  ( WD: wheel drive, WS: wheel steering )


Main specifications and features

• Platform height: 10M to 20M

 Working loading capacity: 200kg~230kg

 Power: Environmentally friendly and pollution-free battery power

 Equipped with upper and lower consoles (ground console and platform console)

• There is a foot switch on the platform, which can only be operated by stepping on the foot switch

Both upper and lower consoles are equipped with emergency stop buttons

With self-diagnosis function, customers can quickly grasp the working status of the equipment in time, and better maintain the equipment

If our standard model can not meet your demand, then just let us know your detailed requirement,like goods weight,platform size and lifting height etc,then Futlift will design it specially and offer you the best solution.

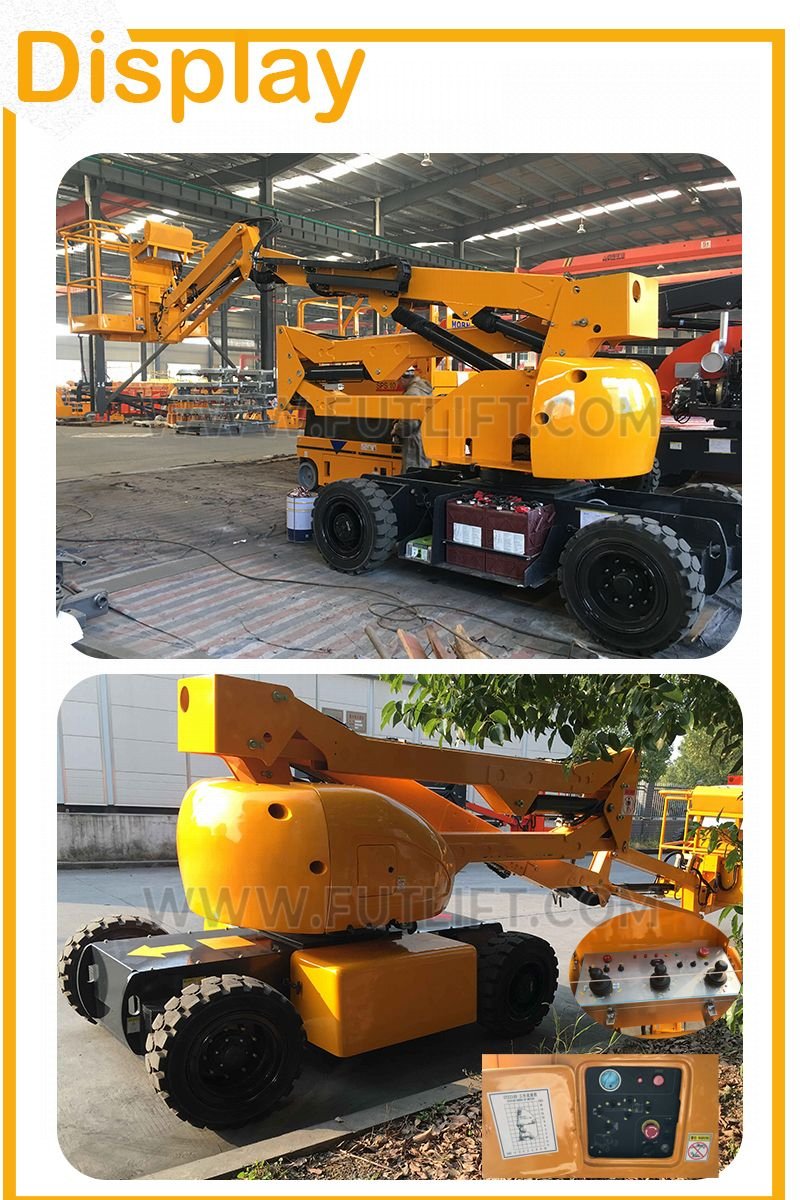

Photos Display
